(C#) 실시간 선 차트(그래프) 만들기 3

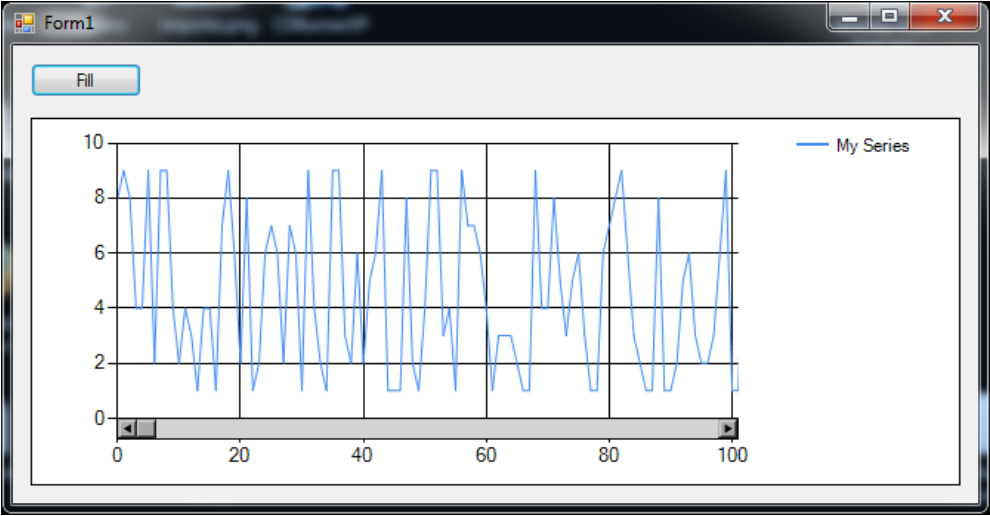

private void FillChart()
{
    int blockSize = 100;

    // generates random data (i.e. 30 * blockSize random numbers)
    Random rand = new Random();
    var valuesArray = Enumerable.Range(0, blockSize * 30).Select(x => rand.Next(1, 10)).ToArray();

    // clear the chart
    chart1.Series.Clear();

    // fill the chart
    var series = chart1.Series.Add("My Series");
    series.ChartType = SeriesChartType.Line;
    series.XValueType = ChartValueType.Int32;
    for (int i = 0; i < valuesArray.Length; i++)
        series.Points.AddXY(i, valuesArray(i));
    var chartArea = chart1.ChartAreas(series.ChartArea);

    // set view range to (0,max)
    chartArea.AxisX.Minimum = 0;
    chartArea.AxisX.Maximum = valuesArray.Length;

    // enable autoscroll
    chartArea.CursorX.AutoScroll = true;

    // let's zoom to (0,blockSize) (e.g. (0,100))
    chartArea.AxisX.ScaleView.Zoomable = true;
    chartArea.AxisX.ScaleView.SizeType = DateTimeIntervalType.Number;
    int position = 0;
    int size = blockSize;
    chartArea.AxisX.ScaleView.Zoom(position, size);

    // disable zoom-reset button (only scrollbar's arrows are available)
    chartArea.AxisX.ScrollBar.ButtonStyle = ScrollBarButtonStyles.SmallScroll;

    // set scrollbar small change to blockSize (e.g. 100)
    chartArea.AxisX.ScaleView.SmallScrollSize = blockSize;
}

원천 : https://stackoverflow.com/questions/5141126/adding-a-scroll-bar-to-ms-chart-control-c-sharp
